Marin Bikes DSX FS 2025

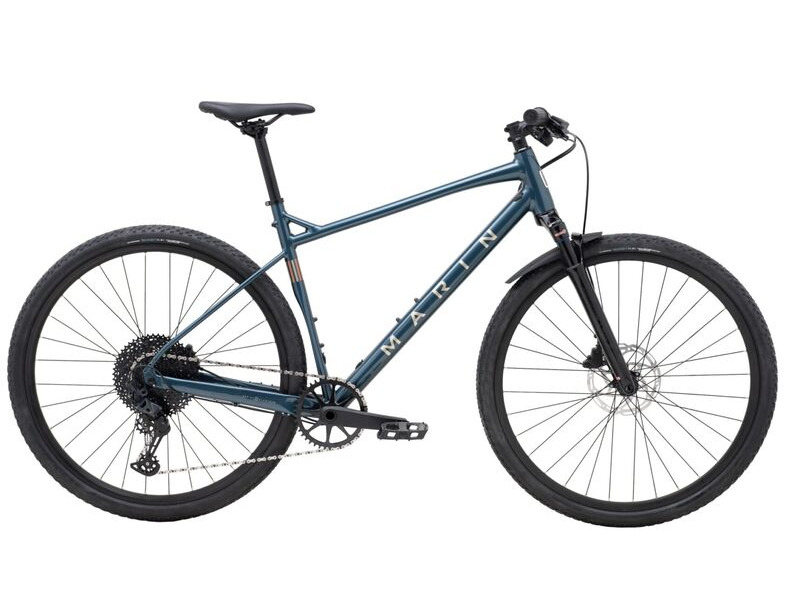

Marin Bikes DSX FS click to zoom image
Pricing
£1499.00
**Ordered Upon Request**
Finance* from £83.51 per month

*subject to status, minimum spend applies

See info below
Cycle 2 work Discounted Bikes
How long will delivery take
How To Assemble Your New Bike
Discount Code
Specifications
Finance
Price Match
Click & Collect
Size Guides
Model Year 2025
Options S BLUE Low Stock To Order
M BLUE Out of Stock
L BLUE Out of Stock
XL BLUE Low Stock To Order
Style The DSX is the mountain biker's gravel bike with familiar hand positioning, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
The DSX is a flat bar gravel bike based on our Gestalt X drop bar platform with Series 3 aluminum frames and carbon forks with large tire clearance, low standover, hydraulic disc brakes, and 1x drivetrains with the comfort and heads up positioning of a flat handlebar. Mountain bike sensibilities in a flat bar package capable of fast commutes,long Saturday adventures spanning pavement and light singletrack, and all-day gravel events.
Frame: Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Fork: SR Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts
Headset: FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8" x 1 1/2"
Stem: Marin 3D Forged Alloy
Handlebar: Marin MiniRiser
Grips: Marin MTB
Brake Levers: Tektro Hydraulic
Brakes Front: Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
Brakes Rear: Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
Tires: Vee Tire Co. Rocketman, 700Cx44mm
Rim: Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
Hub Front: Forged Aluminum, 100x12mm, Disc Specific, 32H
Hub Rear: Forged Aluminum, 142x12mm, Disc Specific, 32H
Spokes: 14g Black Stainless Steel
Derailleur Front: -
Derailleur Rear: Shimano SLX, RD7100, 12-Speed
Shift Lever: Shimano Deore, SLM6100, 12-Speed
Chain: KMC X12
Cassette: Sunrace, 12-Speed, 11-51T
Crankset: Forged Aluminum, 42T Steel Narrow Wide Chainring
Bottom Bracket: Sealed Outboard Bearing
Pedals: Nylon Platform
Saddle: Marin DSX
Seatpost: Marin Alloy
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
